ResQmax Line Throwing Appliance

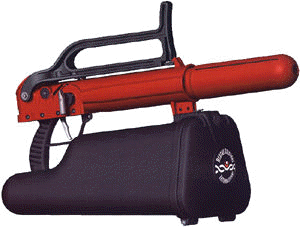

resqmaxlogo.gif (5012 bytes)The ResQmax is a new generation line-throwing appliance specifically designed to deploy a line only, or an auto-inflating flotation sling & retrieval line to an otherwise inaccessible point in both land based and maritime environments, providing an emergency response capability without putting the rescuer at risk.

  • Utilizing a patented air-thrust technology, the ResQmax is non-pyrotechnic, re-usable and re-fillable
  • Launcher assembly housings are injection molded from polycarbonate, for high impact resistance
  • 3000psi/207bar service pressure projectiles.

!--> From the code of 46 CFR 192.45

The ResQmax is capable of deploying a line up to 230 meters depending on the service pressure, weight of line and type of the projectile used.

MAXIMUM SAFETY

  • The safety mechanism is "always-on", re-setting automatically when a projectile is inserted.
  • The projectile's "push-click" engagement allows easy reloading, even in the dark.
  • A pressure relief burst disk prevents unsafe pressure build-up that could result from exposure to extreme heat.

MAXIMUM PERFORMANCE
Multi-Shot Capacity. Our patented nozzle valve now permits any number of projectiles to be precharged and stored with the unit, allowing deployment of multiple projectiles in rapid succession.

MAKSİMUM VERSATILITYsling.gif (6064 bytes)

  • Sling Projectile
    The sling projectile will deploy an auto-inflating flotation collar and retrieval line to a victim in the water. The inflatable sling is fitted with a water activated device which inflates the sling automatiacally on contact withwater, providing sufficient buoyancy to support a 300lb/136kg victim.
  • Folding Stock Option
    A 12in/30cm folding stock is available for geater accuracy of deployment and serves as a convenient carry handle in the collapsed position.
  • Line Projectile
    The line projectile will deploy a variety of lines over a range of disatnces, depending on the service pressure and the type of line used.
  • Mooring Line Grappling Hook
    A fixed hook with three non-barped tines is fabricated from titanium.
  • Cordura Kit Carry Bag
    canta.gif (10100 bytes)Cordure fabric carry bag is designed for durability and convenience. Features reinforced water-resistant vinyl bottom and reflective strips.
  • Rigid Rail Case
    The rigid rail case is designed to fasten to the rail of a vesel.

AVERAGE DISTANCES

Testing under varying conditions shows an average distance achived as shown below:

Part# Description with Line Projectile with Sling Projectile with MLG Hook
801 7mm Climbing Line (Spectra/Nylon) - - 27 m
802 5,5mm Climbing Line (Spectra/Nylon) - - 37 m
803 4mm Spectra 104 m 92 m -
804 6mm Spectra 87 m 82 m -
805 3mm Dacron 10 m 92 m -
806 8mm Polyspectra 76 m 61 m -
807 8mm Polypropylene 69 m 61 m -
808 6mm Polypropylene 92 m 70 m -
809 6mm Polypropylene 92 m 70 m -
810 2mm Spectra (wDacron Leader) 122 m - -
811 Dacron İp 230 m - -

RESQMAX KITS

Different kit are possible. For detailed information please get in touch.
