System 751


[ Proeye Home | System 751 | System 951-S | System 888 | Optional Equipment ]

Multi-Purpose Search Camera System

751-1.jpg (19335 bytes)The light and ruggedly designed PROEYE Multi-Purpose Search Camera Systems can be used not only for rescue on land, but also under water and from air crafts, especially System 751 which has versatile features with its unique design.

751-2.jpg (9533 bytes)Its small Camera Head has 270 Articulation which can be controlled from the Control Box.

751-4.jpg (15719 bytes)In case of earthquakes, by fixing Camera head to the Telescopic Rod*, rescue personnel can locate the entrapped victims.

When rescue involving audio is needed, the small microphone of PROEAR AUDIO SYSTEM* can be attached to the Camera Head easily.
(*Optional equipment)

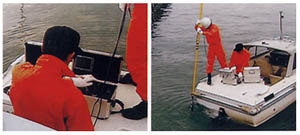

751-3.jpg (15771 bytes)In case of underwater rescues, by dropping the Camera Head (designed underwater up to 50m) directly into water or attaching it to the Telescoping Rod*, dropped objects or vehicles can be found easily. (*Optional equipment)



751-7.jpg (13267 bytes)In case of rescue from Air Crafts, by hanging Camera Head from helicopter, Camera Head allows the rescue personnel to receive the clear image of inaccessible location or under water. In this case, 20m Extension* Cable with Water Proof Connector can be helpful.

8 mm Video Tape Recorder is installed in Control Box which records the image of scene and the 6" LCD display offers wide and clear images as well.
(*Optional equipment)


6" LCD ,Color, Display

12v Rechargeable Battery

Remote control for Camera

8mm,Video Tape Recorder


FEATURES

  1. Camera Head :
    Model PE-707 / Number of Pixel : 737"505
    Search Light : High Gain Light
    Water Proof : Underwater up to 50m
    With 10m Camera Cable
  2. Display : 5.5" LCD
  3. Video Tape Recorder : 8mm VTR (Sony*)
  4. Rechargeable Battery : 12V
  5. Control Box : 290H x 280W x 395L ; 10.5 kg
  6. Operating Time : 1.5 ~ 2Hrs

OPTIONAL EQUIPMENT

  1. 751-5.jpg (6897 bytes)Telescopic Rod : Fiber Glass model is strong withstanding corrosion and is designed for use in under water search work. The aluminum model is designed to be used for land rescue as in earthquake zones.
    Fiber Glass : 3m, 5m, 6m
    Aluminum (Hard Anodized) : 3m
  2. Spare Rechargeable Battery : PC2001
  3. Proear Audio System : PE-100 Designed to detect the feeble voice and faint breathing of victims. Small and high sensitive Microphone can be attached to Camera Head instantly.
  4. Extension Cable : 20m extension Cable with water proof Connector.
